MARS Rainbow High bay light70W-200W
MARS Rainbow High bay light70W-200W
features
1. High luminous efficiency (the whole light effect is above 120 lm/W, up to 160Lm/W), replacing traditional light sources such as metal halide lamps and mercury lamps, saving more than 60%
2. High-purity aluminum (A1060) reflector, sandblasted on the surface, effectively controlling glare；
3. IP65 protection level,stable operation in common environments, to ensure that no dust enters the lamp body；
4. Bracket installation method,suitable for installation requirements of different places；
5. With 1-10V and ZigBee wireless control dimming function；
6. Mainly used in lighting places such as industrial plants, warehouses, gymnasiums, awnings, platforms, etc.
Specification
| Product Model | AL- HB07 | AL- HB10 | AL- HB12 | AL- HB15 | AL- HB18 | AL- HB20 |
| Input Wattage | 70W | 100W | 150W | 120W | 180W | 200W |
| Rated Luminous Flux(lm) | 9450 | 13550 | 16200 | 20250 | 24300 | 27000 |
| Luminous Efficacy | 135- 160Lm | |||||
| Input Voltage | AC220V | |||||
| Chromogenic Index (CRI) | Ra≥70 | |||||
| Color Temperature | 5700K | |||||
| Frequency Range | 50/60Hz | |||||
| Power factor | >0 95 | |||||
| IP Rating | IP 65 | |||||
| Lifespan | 50000Hrs | |||||
| Warranty | 5 years | |||||
| Operation Temperature Range | -40°to+45°C | |||||
| Fixture Size(mm) | 410*252 | 410*252 | 445*276 | 445*276 | 526*305 | 526*305 |
| Net Weight(KG) | 3 .0KG | 3 .0KG | 4 .3KG | 4 .3KG | 5 .2KG | 5 .2KG |
| Gross Weight(KG) | 3 .3KG | 3 .3KG | 4 .7KG | 4 .7KG | 5 .8KG | 5 .8KG |

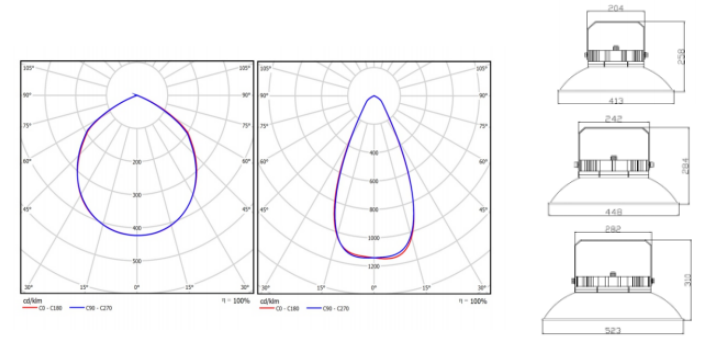

Light distribution curve and size chart
Installation&Application
1.Must have earth line in the right application!
2.After Earthing ,must use insulation tape,insure the separating and water-proof.
3.Fastening the sorew,in case it gets loose!
4.input voltage not exceeding AC100~277V/DC24V!
After sale service
Response in 2 hours if you have any problem when you receive the goods .
Below condition is free of repairing .
Damage due to faulty application and operation .
Damage due to transportation .
Damage due to self repairing .
Damage due to natural disaster.
