MARS Economic tri proof light 10-36W

MARS Economic tri proof light 10-36W

Short Description:

The luminous flux of the system is as high as 4000lm , which is a perfect replacement for the double-tube T8 series of waterproof lamps . The whole light efficiency is as high as 110lm/W, energy saving is 65% , and it can be expanded to 0- 10V/DALI smart version .


Product Detail

download pdf

Product Tags

Features

Beautiful and flexible
The integrated luminaire design reduces the size and enhances the brightness of the lighting space; the bracket sliding guide groove design improves the flexibility and convenience of on-site installation.

Robust and reliable
The shell is manufactured by the extrusion process of anti- ultraviolet outdoor- grade PC material , and is equipped with a respirator design to ensure long- lasting protection in various environments .
With high-quality sealant to achieve IP65 protection performance , to ensure resistance to the intrusion of water and dust , it can also provide the best lighting effect under humid and dusty conditions .

Long life
The LED light source uses Lumileds chips and Lipud drivers to ensure that the entire lamp has a life of up to 50 ,000 hours, and more than five years of quality and security operation .

Comfortable and efficient
Professional optical design with lumileds LED core components , the light effect is soft and comfortable , and the excellent color rendering can effectively restore the real color of the environment .

Specification

Product model

1200-36

1200-20

900-24

900-18

600-20

600-10

System power (w)

36

20

24

18

20

10

system output (lm)

4000

2200

2400

2000

2000

1100

Weight (kg)

1.1

0.75

0.6

0.6

0.5

0.5

Color temperature CCT (K)

2700~6500

Chromogenic index (CRI)

70/85

Color tolerance (SDCM)

≤5

Duration (H)

50000(L70)

Control

PSU fixed output/ DALl digital dimming

LED light source

Lumileds

LED Drive Constant Current Source

Lifud( segregation)

Power factor

≥0.9

Material

shell shading surface: high strength PC material Shell light diffusion mask: anti-ultraviolet and thermal stability PCmaterial Sealant: back to the sky Support assembly :304 stainless steel Respirator: Donaldson

IP

lP65/IKO7

Working temperature()

-20°C~+40°C

Electrical grade

l category

Working Voltage(V)

100~240V 50/60Hz

Shell color

Dark grey/white

Way to install

Ceiling,Suspension

Attestation

CE/ROHS

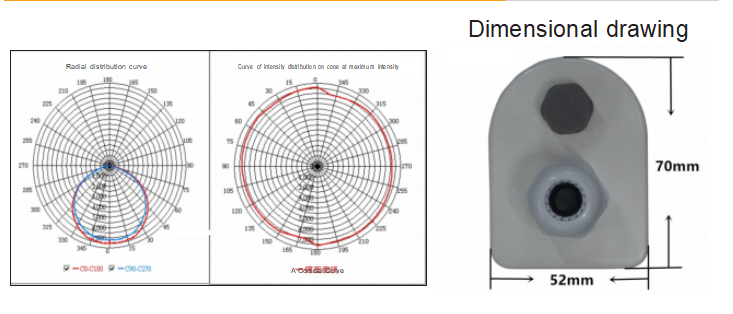

Curve Distribution&Structure

cc

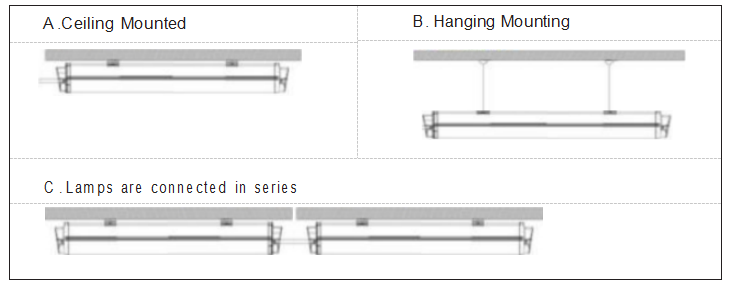

Installation&Application

dd

1.Must have earth line in the right application!
2.After Earthing ,must use insulation tape,insure the separating and water-proof.
3.Fastening the sorew,in case it gets loose!
4.input voltage not exceeding AC100~277V/DC24V!

After Sale Service

Response in 2 hours if you have any problem when you receive the goods .
Below condition is free of repairing .
Damage due to faulty application and operation .
Damage due to transportation .
Damage due to self repairing .
Damage due to natural disaster.
