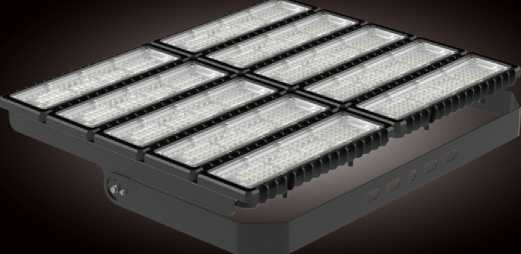

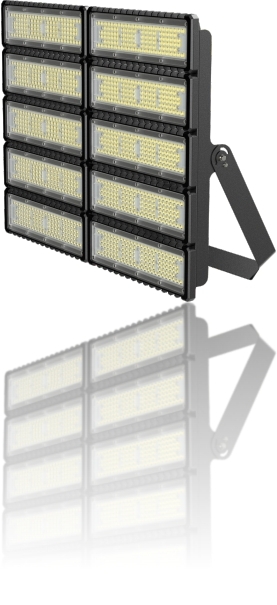

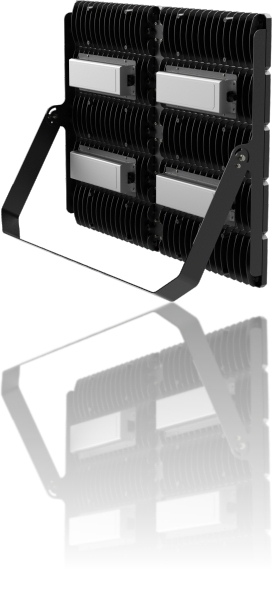

LED Module Tunnel Light
Adopt advanced finite element analysis technology to optimize the heat dissipation structure design of the product. The hot and cold areas of the lamp power supply and the radiator are separated, and the service life is longer.

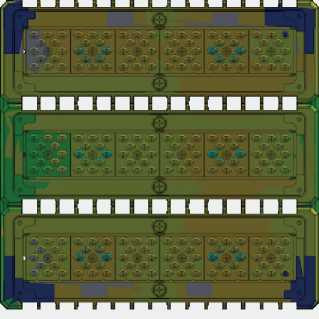

Schematic diagram of conduction heat dissipation (front)

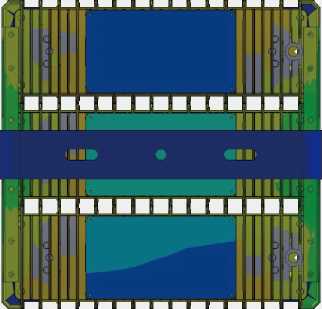

Schematic diagram of conduction heat dissipation (reverse)

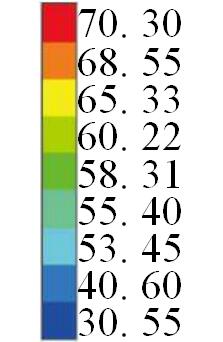

Unit :°C
The effect of lamp heat on the air

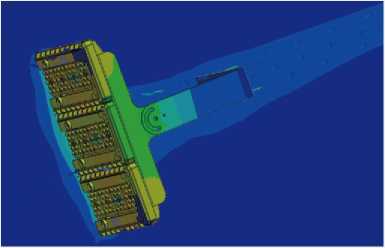

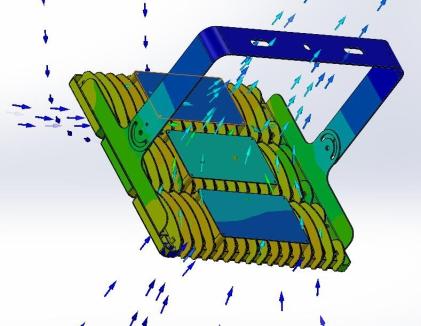

Schematic diagram of convection cooling
Schematic diagram of conduction heat dissipation

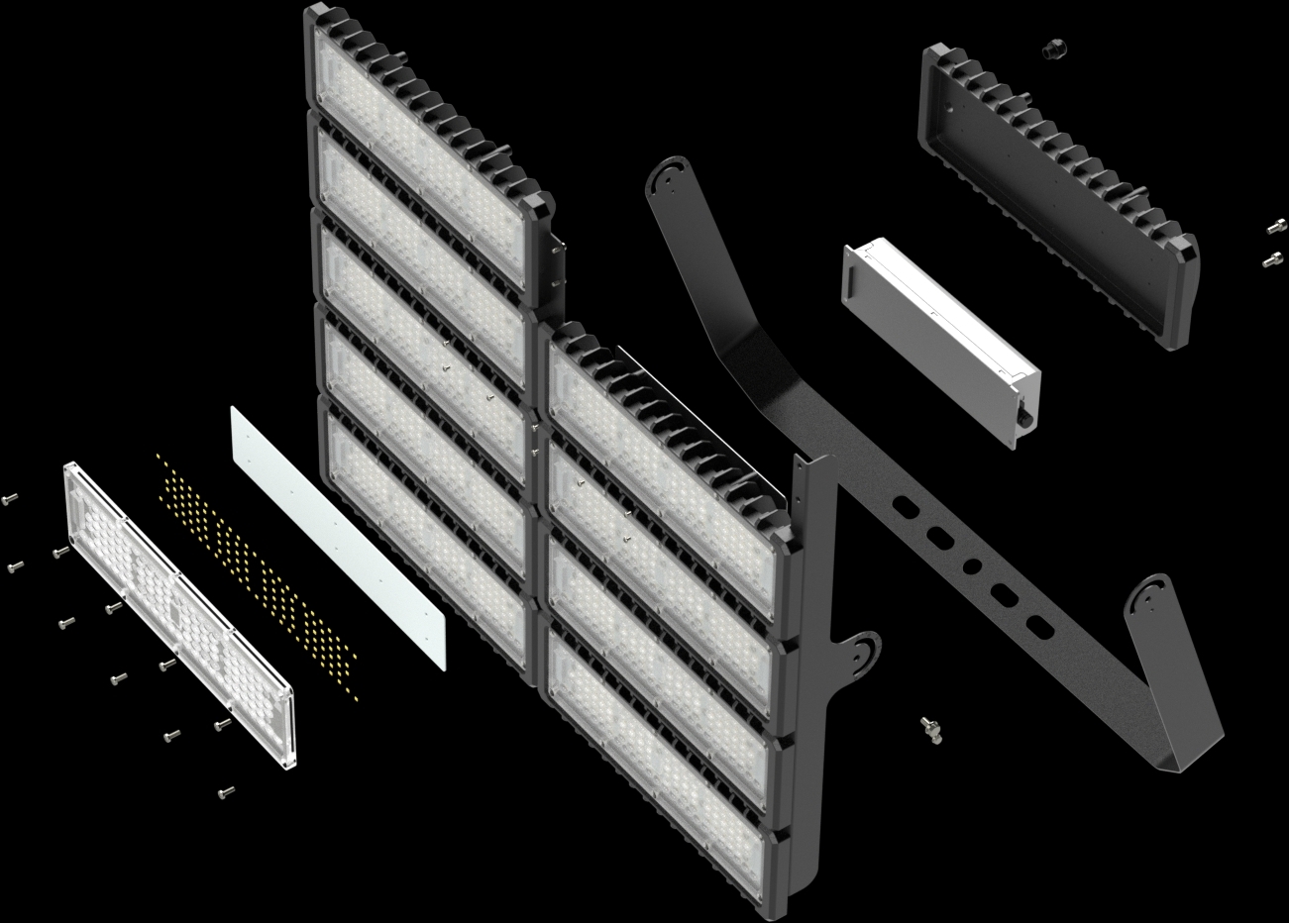

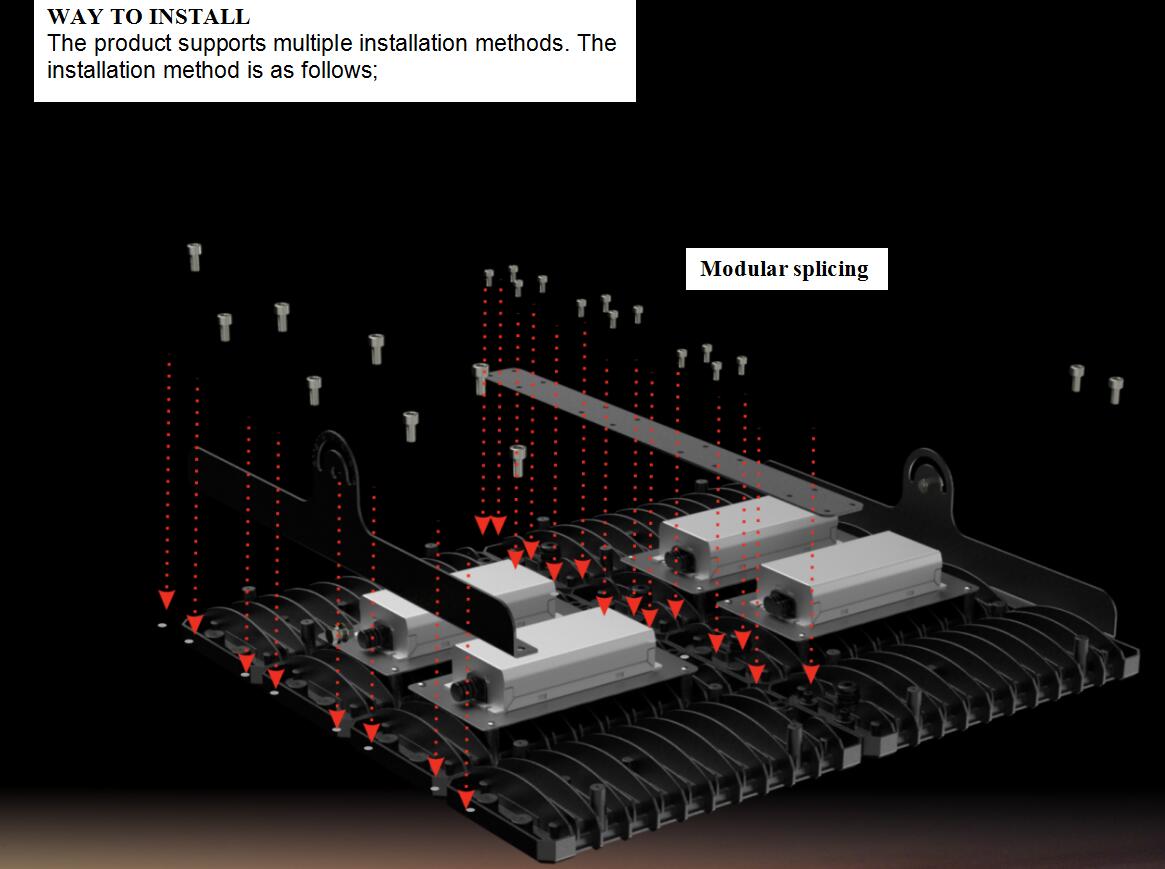

EXPLODED VIEW
1.Stainless steel screws, with a longer life, and the installation is more assured
2. Optical PC lens, accurate light control. UV resistance, long use is not yellow.
3. High efficiency 3030 lamp beads, finished light efficiency up to 140 lm/W.
4. High thermal conductive aluminum substrate can quickly dissipate the heat of
the lamp bead chip and maintain a higher light flux maintenance rate of the lamps.

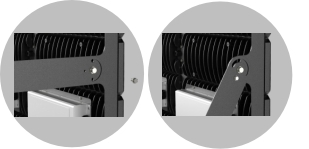

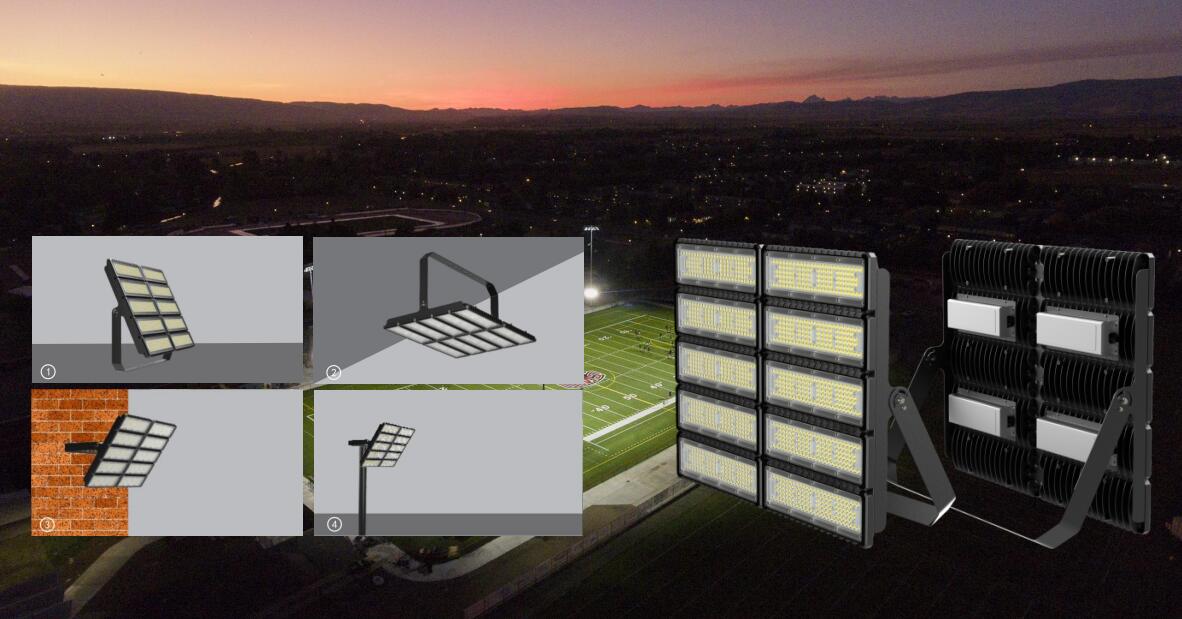

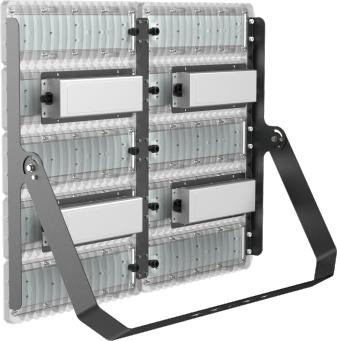

5. The Strong mounting bracket has an adjustable Angle.
6. Adapt to the brand of waterproof LED drive power supply. Stable performance, engineering without worry.
7. Die cast aluminum shell, thermal conductivity efficiency up to 96W/M.K. Keep lamps higher light flux maintenance.
8. Waterproof Gic head, more reliable.

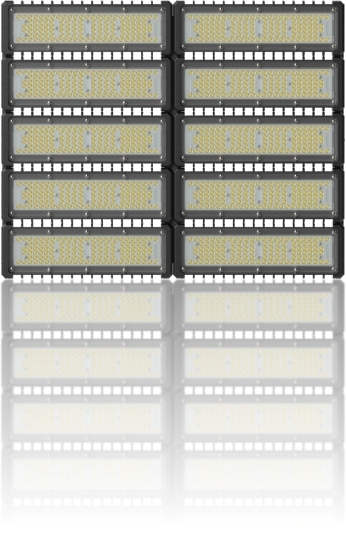

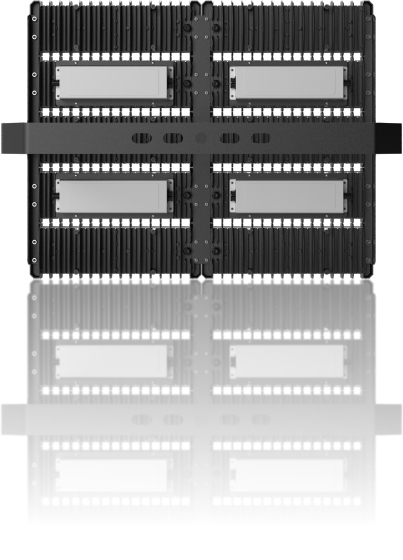

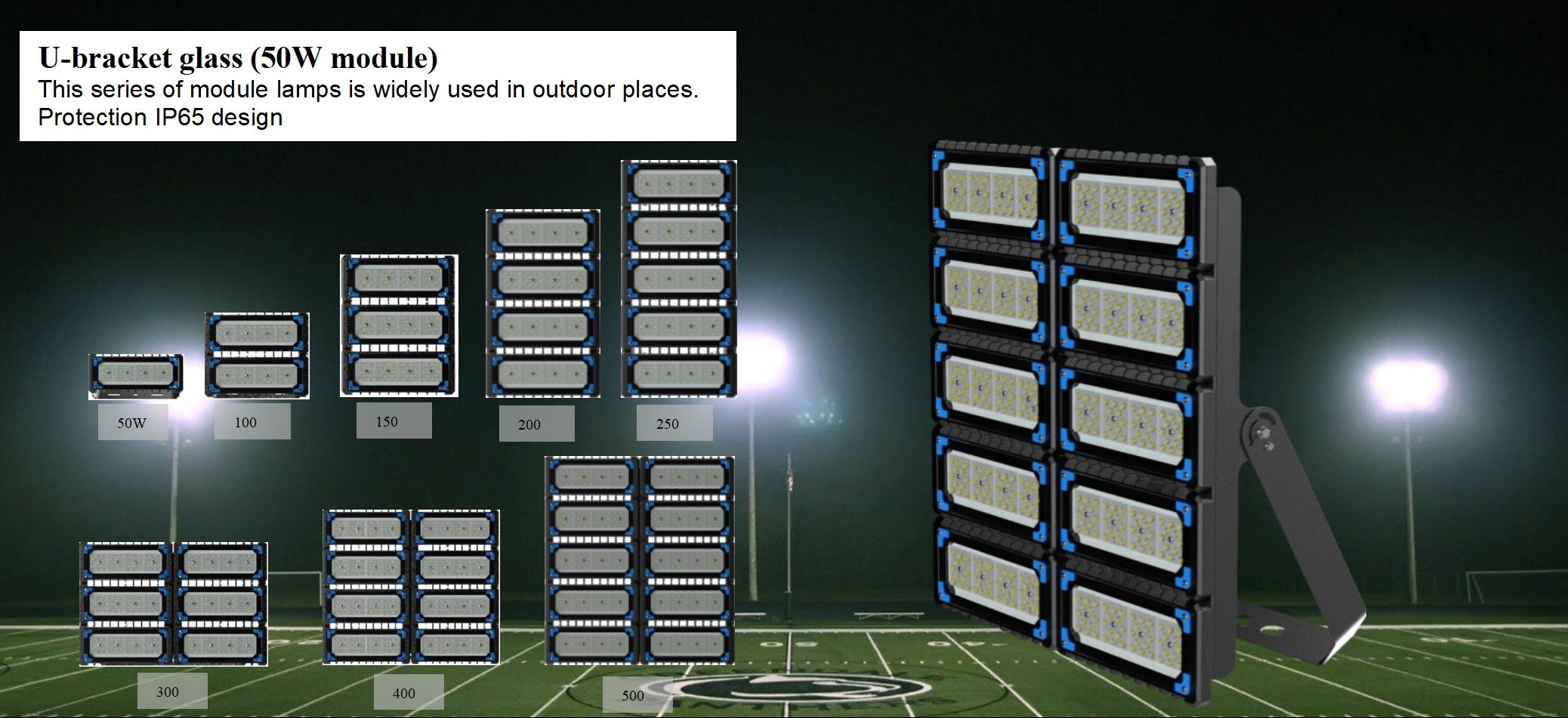

A VARIETY OF STYLES

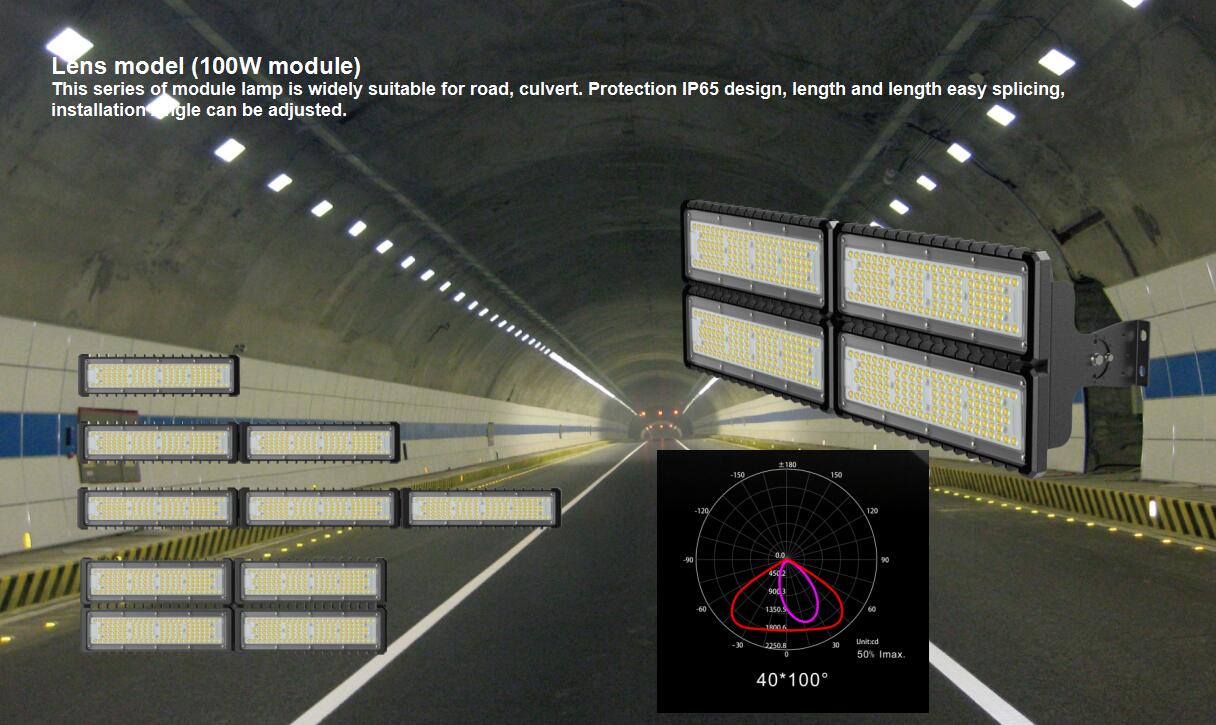

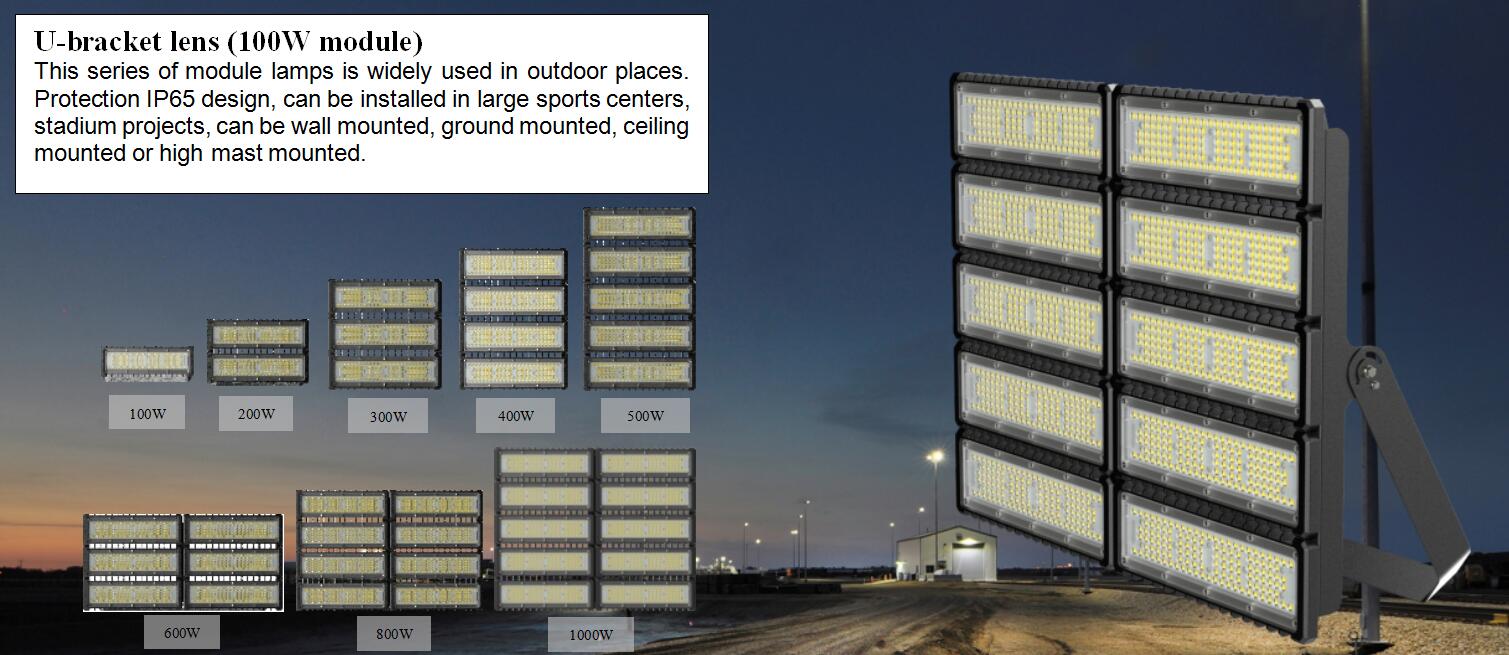

Tunnel lens U-shaped bracket lens model Glass
Product Paramete
|
Specification |
Power |

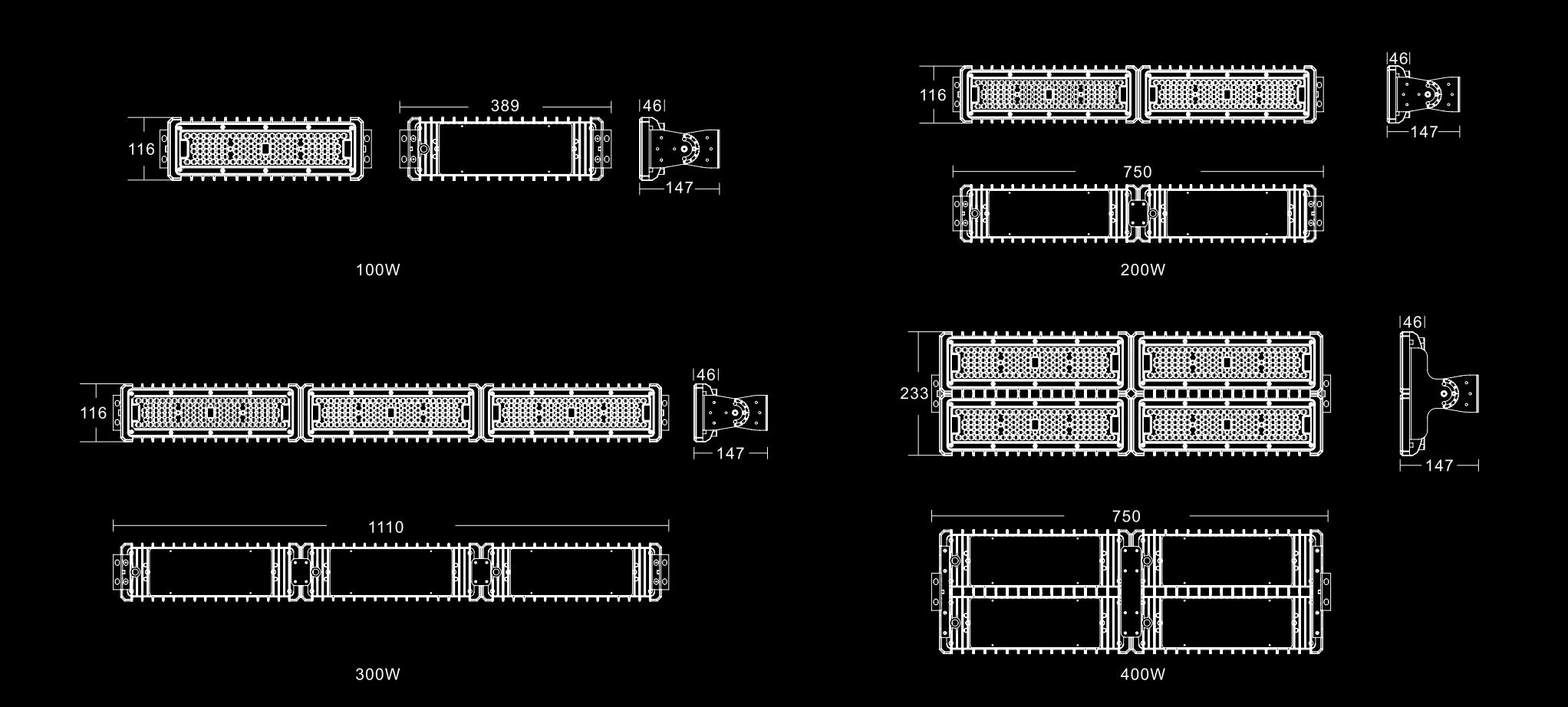

product size |
lens |
aluminum substrate |
THD |
light efficiency |
PF |
CRI |
IP/IK |
|
MARS628C-1 |
100W |
389*116*46mm |
40*100° |
6 String 21 and |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628C-2 |
200W |
750*116*46mm |
40*100° |
6 String 21 and |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628C-3 |
300W |
1110*116*46mm |
40*100° |
6 String 21 and |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628C-4 |
400W |
750*116*46mm |
40*100° |
6 String 21 and |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |

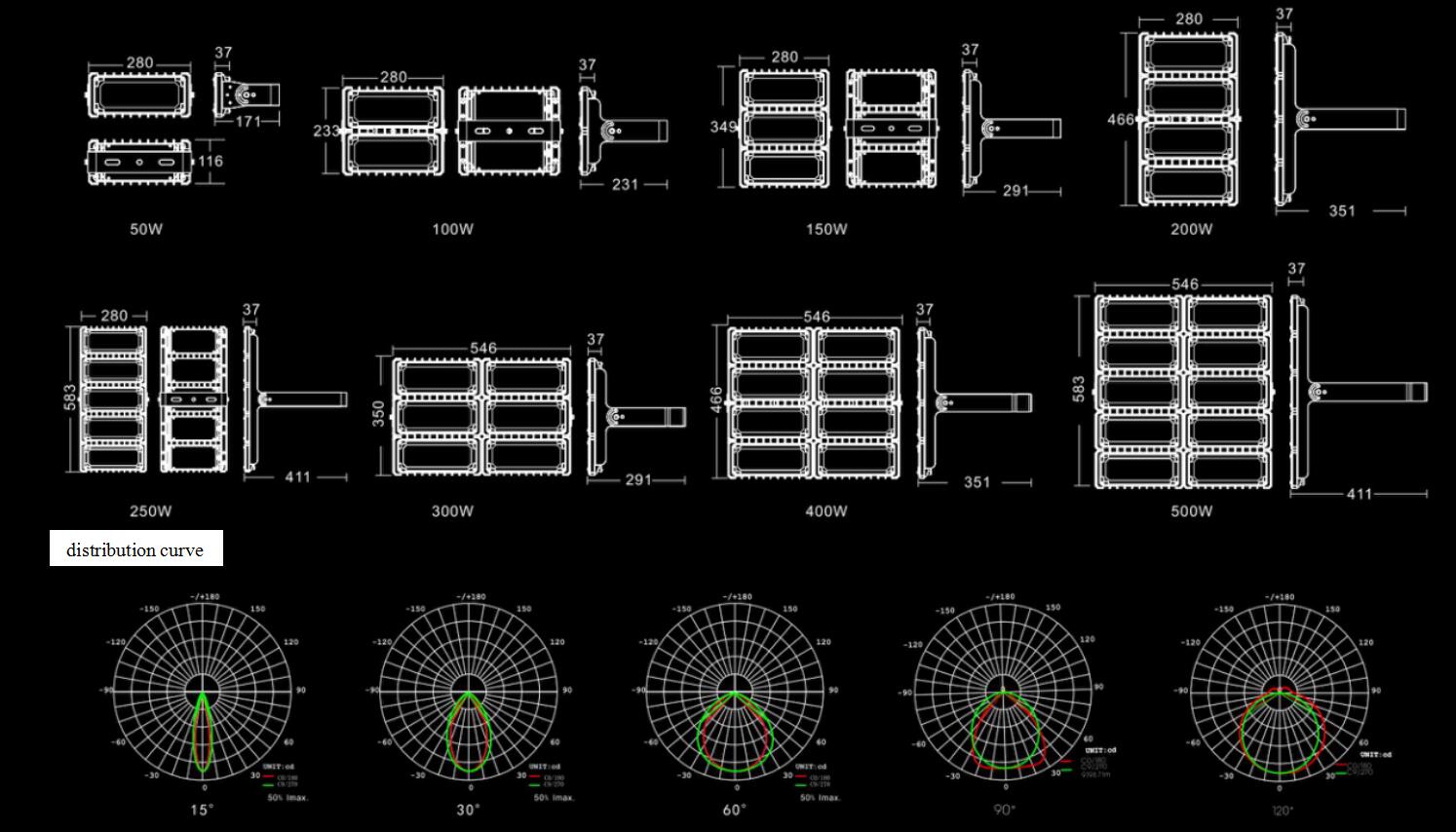

Product Paramete
|
Specification |
Power |
product size |
lens |
aluminum substrate |
THD |
light efficiency |
PF |
CRI |
IP/IK |
|
MARS628A-1 |
50W |
280*116*37mm |
15°/30o/60°/90°/120oTM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-2 |
100W |
280*233*37mm |
15o/30o/60o/90°120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-3 |
150W |
280*349*37mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-4 |
200W |
280*466*37mm |
15°/30°/60o/90o/120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-5 |
250W |
280*583*37mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-6 |
300W |
546*350*37mm |
15730°/60°/90°120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-7 |
400W |
546*466*37mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628A-8 |
500W |
546*583*37mm |
15°/30o/60o/90°/120°TM2/TM3/TM4 |
8 Strstring 8 and / 6 string 16 |
<15% |
130lm/W |
>0.95 |
RA>70 |
IP65/IK08 |

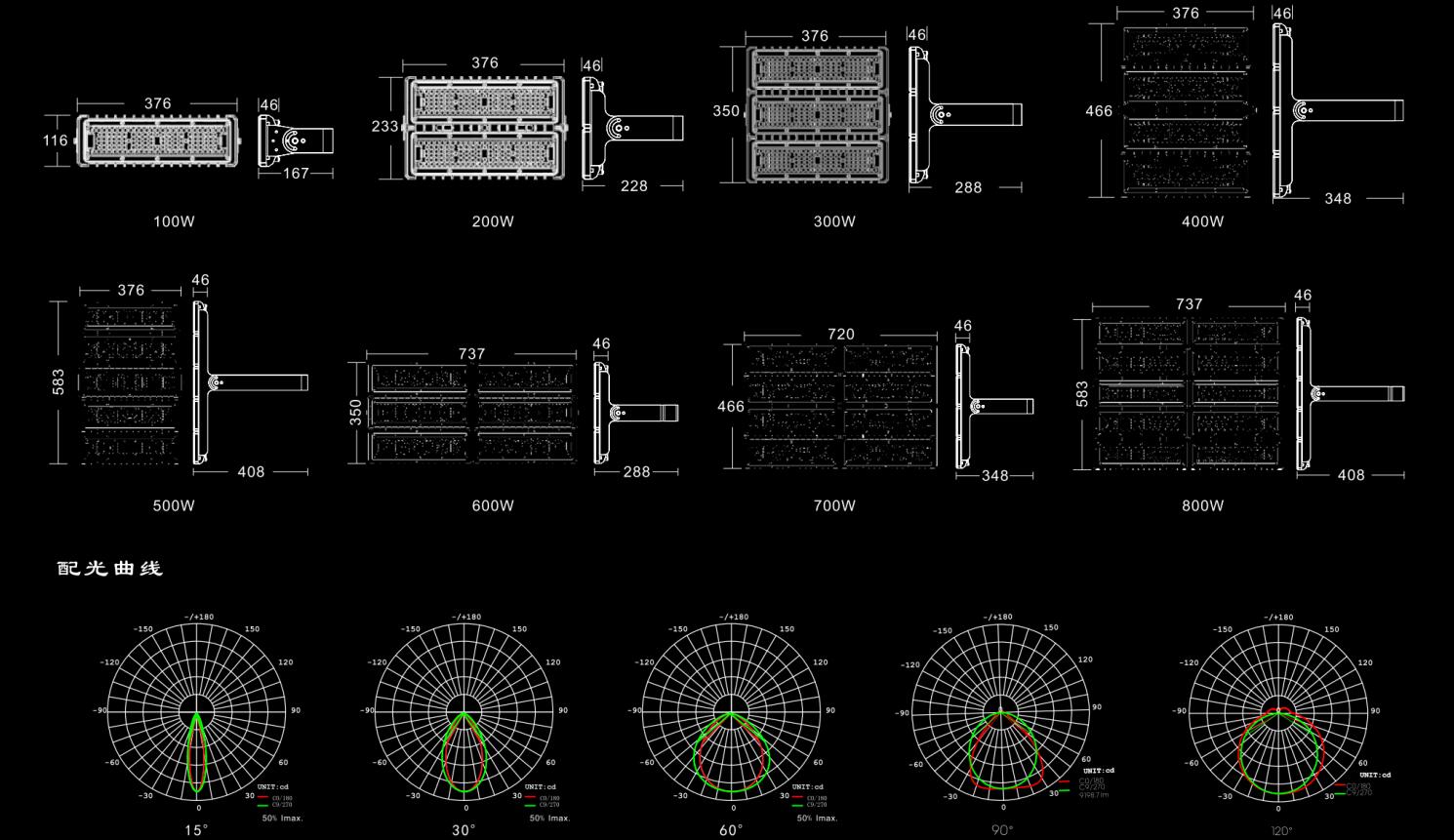

Product Paramete
|
Specification |
Power |
product size |
lens |
aluminum substrate |
THD |
PF |
CRI |
IP/IK |
|
MARS628B-1 |
100W |
376*116*46mm |
15°/30°/60°/90°/120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-2 |
200W |
376*233*46mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-3 |
300W |
376*350*46mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-4 |
400W |
280*466*37mm |
15°/30°/60°/90°/120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-5 |
500W |
376*583*46mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-6 |
600W |
737*350*46mm |
15730°/60°/90°120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-7 |
800W |
720*466*46mm |
15°/30°/60°/90°120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
|
MARS628B-8 |
1000W |
737*583*46mm |
15°/30°/60°/90°/120°TM2/TM3/TM4 |
6 String 24 and |
<15% |
>0.95 |
RA>70 |
IP65/IK08 |
Packaging parameters
|
model |
HCN628A-1 |
HCN628A-2 |
HCN628A-3 |
HCN628A-4 |
HCN628A-5 |
HCN628A-6 |
HCN628A-7 |
HCN628A-8 |
|
power |
50W |
100W |
150W |
200W |
250W |
300W |
400W |
500W |
|
Net weight |
1.4/9.5kg |
2.4/6kg |
3.5/4.5kg |
4.6/5.6kg |
5.7/6.7kg |
6.5/7.5kg |
9/10kg |
10.5/11.5kg |
|
package size |
66.5*48*14.5cm |
54.5*31*14.5cm |
43*31*14.5cm |
54.5*31*14.5cm |
66.5*31*14.5cm |
43*57*14.5cm |
54.5*57*14.5cm |
54.5*57*14.5cm |
|
PCS |
6 |
2 |
2 |
1 |
1 |
1 |
1 |
1 |
|
model |
HNC628B-1 |
HNC628B-2 |
HNC628B-3 |
HNC628B-4 |
HNC628B-5 |
HNC628B-6 |
HNC628B-7 |
HNC628B-8 |
|
power |
100W |
200W |
300W |
400W |
500W |
600W |
800W |
1000W |
|
Net weight |
2/9kg |
4/5kg |
6/7kg |
8/9kg |
9.6/10.6kg |
11.3/12.3kg |
15/16kg |
18.6/19.6kg |
|
package size |
62*43*14.5cm |
40*30*14.5cm |
41*40*14.5cm |
53*40*14.5cm |
64.5*40*14.5cm |
43*77*14.5cm |
52*77*14.5cm |
65*77*14.5cm |
|
PCS |
4 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Features
1.AC85-265V 50/60Hz。
2. Light efficiency up to 120-140lm/ W
3.3030smd chip light source.
4. PF>0.9, thd conforms to lvd/emc
5. Die cast aluminum shell, anti-corrosion powder spraying process
6. IP65 outdoor waterproof
7.5 year warranty.
8. Complete export certification.
