KingKong 30W-200W
KingKong 30W-200W
Features

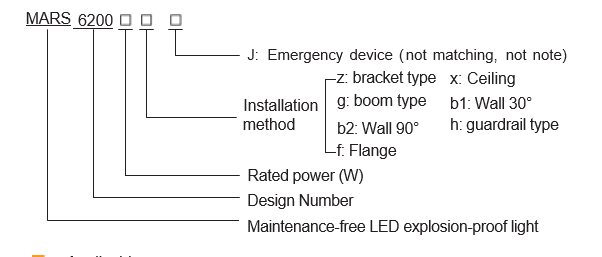

Model meaning

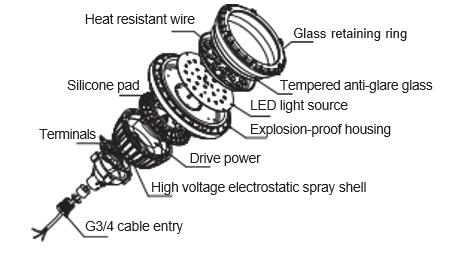

Structural Analysis
Applicable scope
1. It is suitable for areas 1 and 2 in explosive environments;
2. It is suitable for areas 21 and 22 in explosive dust environment;
3. Suitable for IIA, IIB, IIC explosive gas environment;
4. Applicable to T1~T6 temperature group;
5. It is suitable for energy-saving renovation projects and places where maintenance and replacement are difficult;
6. Widely used for lighting in petroleum exploration, oil refining, chemical industry, military industry, textile, food processing and offshore oil platforms, tankers and other places.
Executive standard
GB3836.1、GB3836.2、GB12476.1、GB12476.5、IEC60079-0、IEC60079-1、IEC61241-0、IEC61241-1、GB 19510.1、GB/T24827、GB17945、GB7000.1、GB7000.10、GB17743、GB17625.1。
Product Features
1. The radiator design is made of special aluminum alloy die-casting, and the surface is high-voltage electrostatic spray;
2. Stainless steel exposed fasteners with high anti-corrosion performance;
3. The flame-proof joint surface of the mouth is pure flame-proof structure, and the explosion-proof performance is more reliable;
no glare;
5. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt,
4. Professionally designed light distribution system, high light utilization rate, reasonable light distribution, uniform illumination,
6. Microwave induction dimming system, energy saving and environmental protection;
7. Power factor cosφ≥0.95;
8. It can be equipped with a combined emergency device according to the use requirements . When the power supply is cut off, it
can automatically switch to the emergency lighting state;
9. Steel pipe or cable wiring.
Specification
Emergency Parameters/Intelligent Dimming
| Emergency start time (S) | Charging time (h) | Emergency power (W) | Emergency lighting time (min) |
| ≤0.3 | 24 | 10~50 optional | ≥60min、≥90min optional |
Featured display
W e l l - k no w n b r a n d c h i p s , re a s o n a b le arrangement, unidirectional light emission, uniform and soft light, light efficiency ≥130lm/W, high color rendering Ra>80, long service life, green environmental protection, color temperature 3000K~6500K.
Microwave induction dimming system: a When the human body is within the range of the lamp (5~10 meters adjustable), the lamp runs at full power; B When the human body leaves (0-30S adjustable), the lamp is reduced to 20% power operation, energy saving and environmental protection.
Emergency power wiring diagram
Technical parameter
| Model specification | Explosion-
proof mark |
Light source | Type | Power (W) | Luminous flux (Lm) | Color temperature (k) | Weight (kg) |
|
MARS 6200- □ |
Ex d IIC T6 Gb; Ex tD A21 IP66 T80°C |
LED |
I | 30~80 | 6000~12000 |
3000~6500 |
4.3 |
| II | 90~150 | 14400~18000 | 6.5 | ||||
| III | 160~200 | 19200~24000 | 7.1 |
| Rated voltage/ frequency | Inlet thread | Cable outer diameter | Protection class | Corrosion class |
| 220V/50Hz | G3/4 、 NPT3/4 、 M25X1.5 | Φ9~Φ14mm | IP66 | WF2 |

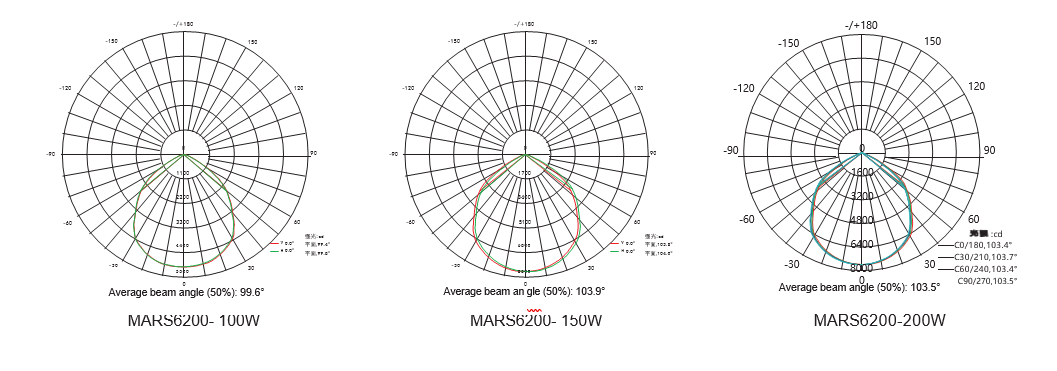

Light distribution curve

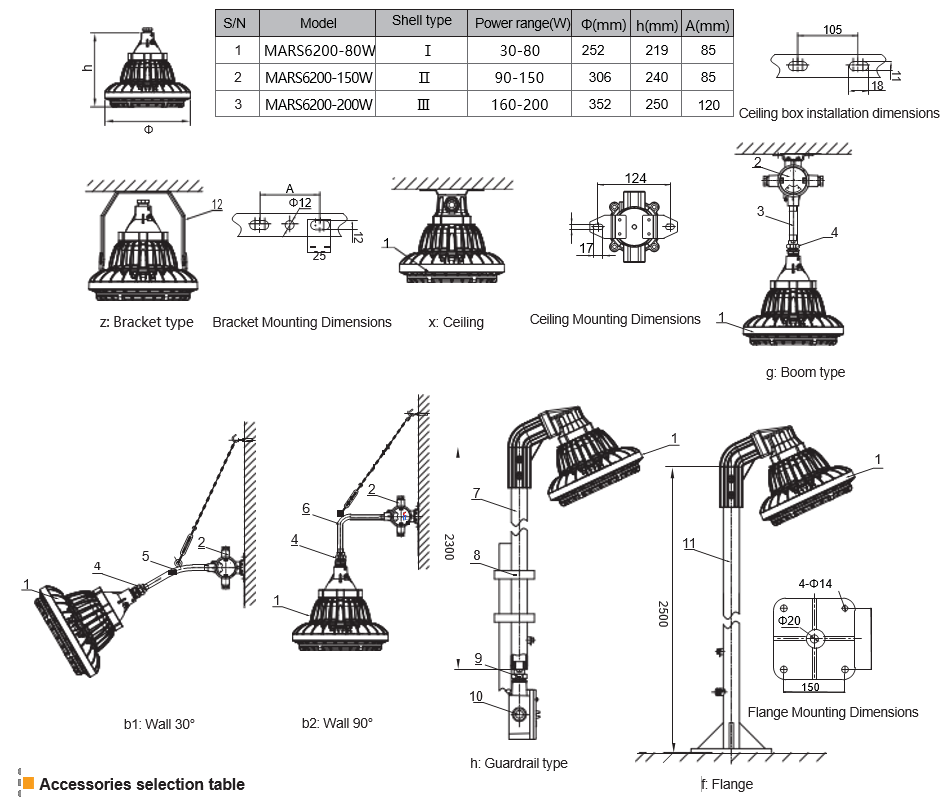

Dimensions and Mounting
Appearance and installation example
Accessories selection table
| S/N | Name | Remark | S/N | Name | Remark |
| 1 | Maintenance-free LED explosion-proof light | / | 7 | 11/4 guardrail light pole + aluminum alloy elbow | User selection |
| 2 | Explosion-proof pendant light box AH-dG3/4” | User selection | 8 | U-shaped pipe clamp + pressure plate + nut + gasket | User selection |
| 3 | 300mmG 3/4” straight rod | Length optional User optional | 9 | Explosion-proof pipe joint joint BGJ-G 3/4” two outer | User selection |
| 4 | Explosion-proof union BHJ-G 3/4"one inside and one outside | User selection | 10 | Explosion-proof Junction Box AH-G3/4” C Tee Flat Cover | User selection |
| 5 | 300mmG3/4”Bend bar with tie bar 30° | User selection | 11 | 11/4 flange light pole + aluminum alloy elbow | User selection |
| 6 | 300mmG3/4”Bend bar with tie bar 90° | 12 | Mounting brackets | User selection |
Ordering notice
1. Select one by one according to the product model specifications and indicate the explosion-proof mark.
For example: if 30W explosion-proof lamps are required, the product model specification is:
MARS 6150-30W W explosion-proof mark: Ex d ⅡCT6 Gb
